Mercedes Benz GLK Bluetec Hybrid - Going Green with Blutec
05 Mar 2008|4,698 views

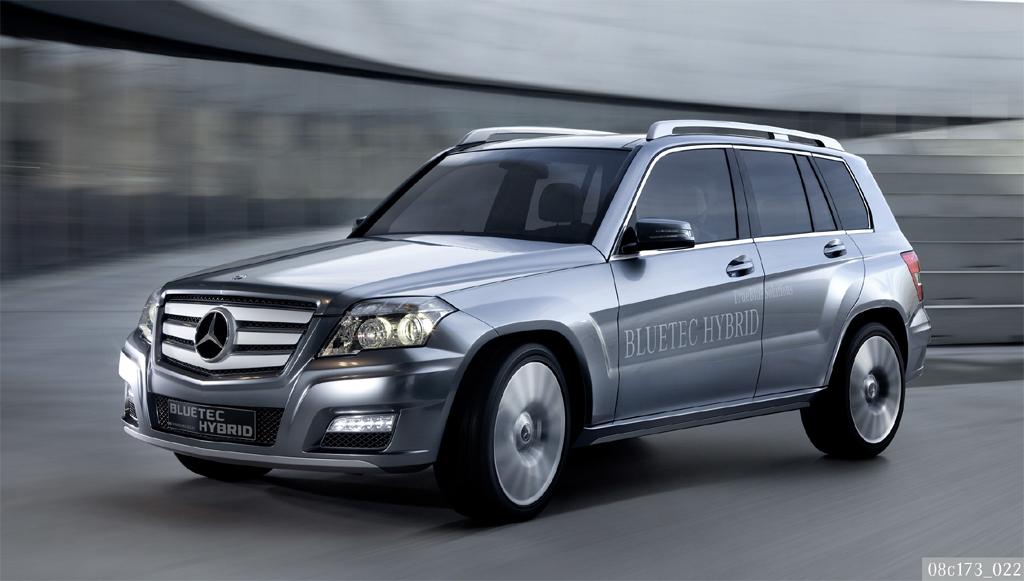

At the 2008 Geneva Motor Show, Mercedes-Benz will unveil the Vision GLK BLUETEC HYBRID to its line-up. The Vision GLK BLUETEC HYBRID combines the new BLUETEC four-cylinder diesel engine generation with a hybrid module. This combination generates an overall output of 165 kW/224 hp, and a torque of 560 Nm. The Vision GLK BLUETEC HYBRID returns a fuel consumption of only 5.9 l per 100 km.

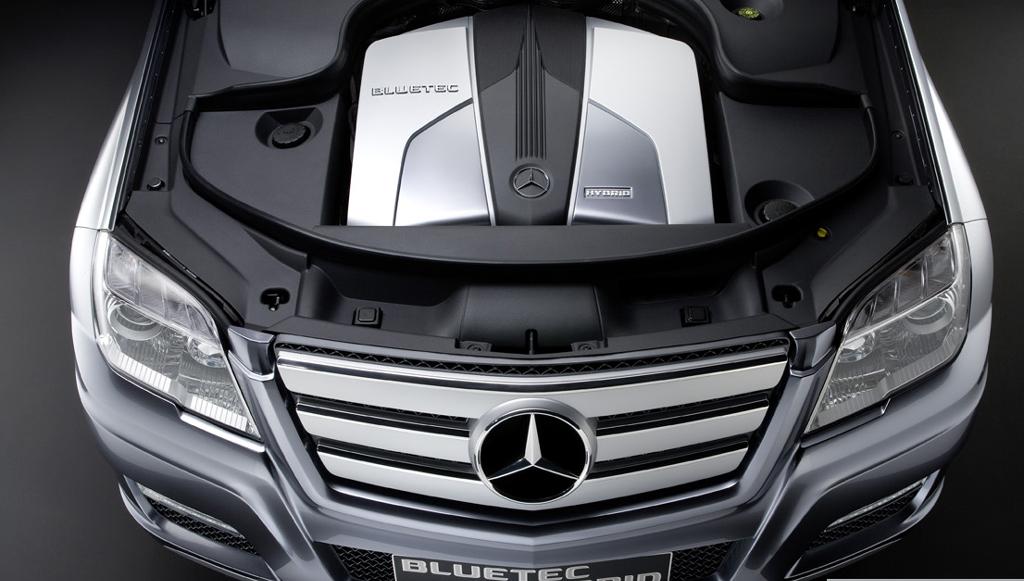

In the hybrid drivetrain, a completely new four-cylinder CDI diesel unit with a displacement of 2.2 litres acts as the internal combustion engine. In terms of exhaust emissions technology, thanks to the latest BLUETEC technology with AdBlue injection, this diesel engine is already among the world's very cleanest power units. The technical highlights of this CDI unit with a geared camshaft drive mounted on the flywheel side include fourth-generation common-rail direct injection with an injection pressure of 2000 bar; innovative piezoelectric injectors and a two-stage turbocharger system.
The compact hybrid module - a disc-shaped electric motor between the CDI engine and the automatic transmission - improves both the environmental compatibility and the effectiveness of the drive system. The electric motor acts as both a generator and starter, and performs convincingly in two important respects: firstly it contributes decisively to fuel economy, and secondly it significantly enhances driving pleasure by virtue of the so-called boost effect.
The electric motor backs up the internal combustion engine during the fuel-intensive acceleration phase by contributing its maximum torque of 160 newton metres. As a result the occupants experience an effortless rush of power right from the start. In addition the system features a comfortable start-stop function which switches the engine off in certain circumstances - for example when the car is stopped at traffic lights.
The driver only needs to operate the accelerator in order to set off again. As the engine starts within milliseconds, the VISION GLK moves off with no delay. This direct starting also helps to minimise emissions and fuel consumption. When it comes to braking, the procedures are reversed: the electric motor acts as a generator, feeding the electrical energy obtained by what is known as the "recuperation" process into an efficient yet compact lithium-ion battery.
This energy can be retrieved when needed - for the next "boost" phase, for example.
All these processes take place fully automatically, thanks to intelligent drive management system.
"With the refinement, driving pleasure, outstanding economy and effective environmental friendliness that is typical of our brand, the VISION GLK BLUETEC HYBRID ideally represents our ideas on future model generations in the world of SUVs", says Dr Thomas Weber, Member of the Board of Management responsible for Corporate Research and Mercedes-Benz Cars Development.
 |  |
 |  |
In the hybrid drivetrain, a completely new four-cylinder CDI diesel unit with a displacement of 2.2 litres acts as the internal combustion engine. In terms of exhaust emissions technology, thanks to the latest BLUETEC technology with AdBlue injection, this diesel engine is already among the world's very cleanest power units. The technical highlights of this CDI unit with a geared camshaft drive mounted on the flywheel side include fourth-generation common-rail direct injection with an injection pressure of 2000 bar; innovative piezoelectric injectors and a two-stage turbocharger system.
The compact hybrid module - a disc-shaped electric motor between the CDI engine and the automatic transmission - improves both the environmental compatibility and the effectiveness of the drive system. The electric motor acts as both a generator and starter, and performs convincingly in two important respects: firstly it contributes decisively to fuel economy, and secondly it significantly enhances driving pleasure by virtue of the so-called boost effect.
The electric motor backs up the internal combustion engine during the fuel-intensive acceleration phase by contributing its maximum torque of 160 newton metres. As a result the occupants experience an effortless rush of power right from the start. In addition the system features a comfortable start-stop function which switches the engine off in certain circumstances - for example when the car is stopped at traffic lights.
The driver only needs to operate the accelerator in order to set off again. As the engine starts within milliseconds, the VISION GLK moves off with no delay. This direct starting also helps to minimise emissions and fuel consumption. When it comes to braking, the procedures are reversed: the electric motor acts as a generator, feeding the electrical energy obtained by what is known as the "recuperation" process into an efficient yet compact lithium-ion battery.
This energy can be retrieved when needed - for the next "boost" phase, for example.
All these processes take place fully automatically, thanks to intelligent drive management system.
"With the refinement, driving pleasure, outstanding economy and effective environmental friendliness that is typical of our brand, the VISION GLK BLUETEC HYBRID ideally represents our ideas on future model generations in the world of SUVs", says Dr Thomas Weber, Member of the Board of Management responsible for Corporate Research and Mercedes-Benz Cars Development.
At the 2008 Geneva Motor Show, Mercedes-Benz will unveil the Vision GLK BLUETEC HYBRID to its line-up. The Vision GLK BLUETEC HYBRID combines the new BLUETEC four-cylinder diesel engine generation with a hybrid module. This combination generates an overall output of 165 kW/224 hp, and a torque of 560 Nm. The Vision GLK BLUETEC HYBRID returns a fuel consumption of only 5.9 l per 100 km.
In the hybrid drivetrain, a completely new four-cylinder CDI diesel unit with a displacement of 2.2 litres acts as the internal combustion engine. In terms of exhaust emissions technology, thanks to the latest BLUETEC technology with AdBlue injection, this diesel engine is already among the world's very cleanest power units. The technical highlights of this CDI unit with a geared camshaft drive mounted on the flywheel side include fourth-generation common-rail direct injection with an injection pressure of 2000 bar; innovative piezoelectric injectors and a two-stage turbocharger system.
The compact hybrid module - a disc-shaped electric motor between the CDI engine and the automatic transmission - improves both the environmental compatibility and the effectiveness of the drive system. The electric motor acts as both a generator and starter, and performs convincingly in two important respects: firstly it contributes decisively to fuel economy, and secondly it significantly enhances driving pleasure by virtue of the so-called boost effect.
The electric motor backs up the internal combustion engine during the fuel-intensive acceleration phase by contributing its maximum torque of 160 newton metres. As a result the occupants experience an effortless rush of power right from the start. In addition the system features a comfortable start-stop function which switches the engine off in certain circumstances - for example when the car is stopped at traffic lights.
The driver only needs to operate the accelerator in order to set off again. As the engine starts within milliseconds, the VISION GLK moves off with no delay. This direct starting also helps to minimise emissions and fuel consumption. When it comes to braking, the procedures are reversed: the electric motor acts as a generator, feeding the electrical energy obtained by what is known as the "recuperation" process into an efficient yet compact lithium-ion battery.
This energy can be retrieved when needed - for the next "boost" phase, for example.
All these processes take place fully automatically, thanks to intelligent drive management system.
"With the refinement, driving pleasure, outstanding economy and effective environmental friendliness that is typical of our brand, the VISION GLK BLUETEC HYBRID ideally represents our ideas on future model generations in the world of SUVs", says Dr Thomas Weber, Member of the Board of Management responsible for Corporate Research and Mercedes-Benz Cars Development.
| |
| |
In the hybrid drivetrain, a completely new four-cylinder CDI diesel unit with a displacement of 2.2 litres acts as the internal combustion engine. In terms of exhaust emissions technology, thanks to the latest BLUETEC technology with AdBlue injection, this diesel engine is already among the world's very cleanest power units. The technical highlights of this CDI unit with a geared camshaft drive mounted on the flywheel side include fourth-generation common-rail direct injection with an injection pressure of 2000 bar; innovative piezoelectric injectors and a two-stage turbocharger system.
The compact hybrid module - a disc-shaped electric motor between the CDI engine and the automatic transmission - improves both the environmental compatibility and the effectiveness of the drive system. The electric motor acts as both a generator and starter, and performs convincingly in two important respects: firstly it contributes decisively to fuel economy, and secondly it significantly enhances driving pleasure by virtue of the so-called boost effect.
The electric motor backs up the internal combustion engine during the fuel-intensive acceleration phase by contributing its maximum torque of 160 newton metres. As a result the occupants experience an effortless rush of power right from the start. In addition the system features a comfortable start-stop function which switches the engine off in certain circumstances - for example when the car is stopped at traffic lights.
The driver only needs to operate the accelerator in order to set off again. As the engine starts within milliseconds, the VISION GLK moves off with no delay. This direct starting also helps to minimise emissions and fuel consumption. When it comes to braking, the procedures are reversed: the electric motor acts as a generator, feeding the electrical energy obtained by what is known as the "recuperation" process into an efficient yet compact lithium-ion battery.
This energy can be retrieved when needed - for the next "boost" phase, for example.
All these processes take place fully automatically, thanks to intelligent drive management system.
"With the refinement, driving pleasure, outstanding economy and effective environmental friendliness that is typical of our brand, the VISION GLK BLUETEC HYBRID ideally represents our ideas on future model generations in the world of SUVs", says Dr Thomas Weber, Member of the Board of Management responsible for Corporate Research and Mercedes-Benz Cars Development.
